Services

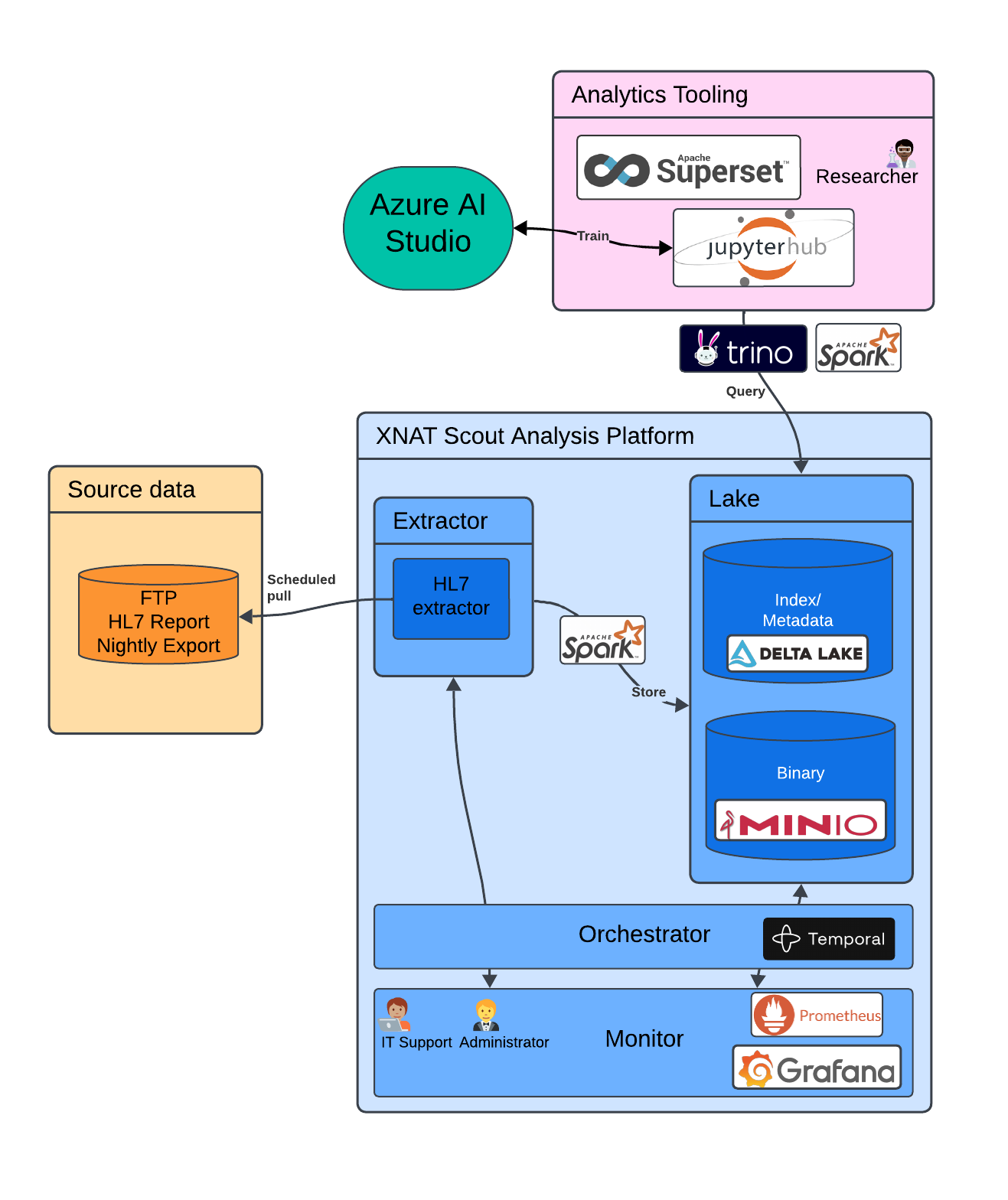

The Scout Radiology Report Explorer consists of several services that work together to process HL7 radiology reports into a data lake, and provide a user interface for users to access and analyze the data.

Below is a list of the main services that make up Scout.

User Services

Analytics

Apache Superset allows users to explore and visualize the radiology report data with a simple, no-code visualization builder or using an integrated SQL IDE.

Under the hood, Superset is able to query the Lake using the Trino database engine.

Notebooks

JupyterHub an interface for power-users to access rad report data. It provides single-user Jupyter notebooks, which can be used to run Python code and interact with report data in the Lake. On first login, users are given a Jupyter notebook with example code to extract and analyze data from the HL7 reports using PySpark.

The Jupyter AI extension is also available to users, which provides AI-powered code suggestions and completions to help users write queries and analyze data. Configure the Jupyter AI extension with your LLM provider of choice (e.g., OpenAI, Anthropic, etc.) to enable this feature.

Application Services

The following services support the system’s backend operations.

Monitor

Grafana is a monitoring and visualization tool used to track system performance, metrics, and logs. Scout provides pre-configured Grafana dashboards for services such as Temporal, MinIO, Kubernetes, and others. These dashboards are available to system administrators for monitoring and troubleshooting purposes. Additionally, logs for each service can be accessed directly through Grafana.

Orchestrator

Temporal is a workflow orchestration service that Scout uses to manage the execution of its Extractor services. Workflow information is available in the Temporal UI and can be used to monitor and debug the data ingestion process.

Extractor

Extractor services are responsible for extracting data from hospital information systems, and landing it into the Lake service. Currently, Scout contains an HL7 Extractor that parses HL7 files from log files that contain a daily export of all HL7 radiology reports. These logs are produced from a custom WashU HL7 subscriber service (external to TAG).

For visibility into the Extractor services, administrators should visit the HL7 Ingest Dashboard within Monitor (log information in Drilldown > Logs may be useful, as well). The Orchestrator UI provides a live look at running Extractors.

Lake

The Lake service houses the Scout Data Lake in a medallion architecture. At the bronze level, raw HL7 files are available. At the silver level, these files are transformed into the Scout Data Schema.

Under the hood, the Lake service leverages a Delta Lake Lakehouse, backed by MinIO distributed object storage. A Hive Metastore manages catalog metadata for the Lake.

Within Notebooks, users can access MinIO and Hive services to read the HL7 radiology report data.
